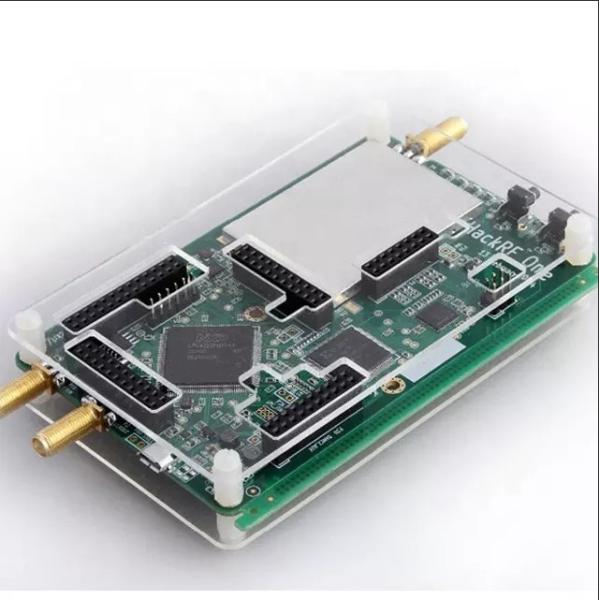

    Surface Mount Turnkey PCB Assembly

    Ask Lasest Price
    Brand Name : HighLeap
    Model Number : PCBA
    Certification : ISO9001/Iso14001/CE/ROHS
    Price : USD 1-30 piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 piece per week
    Delivery Time : 1-15 working days
    MOQ : 1 PCS
    • Product Details
    • Company Profile

    Surface Mount Turnkey PCB Assembly

    Surface Mount Turnkey PCB Assembly Printed Circuit Board Assembly

    PCB Capability
    Product Type
    Printed Circuit Board Assembly
    Material
    FR4/Polyimide
    Layers
    1-48
    Solder Mask
    Green, Yellow, White, Blue, Black, Red, Purple
    Surface Finished
    Lead-free HASL, Immersion Gold, Immersion Silver
    Plugging Via capability
    0.2-0.8mm
    Min Solder Mask Bridge
    0.08mm
    Minimum line width/gap
    3.5/4mil(laser drill)
    Minimum hole size
    0.15mm(mechanical drill)/4mil(laser drill)
    Thicker Copper
    0.5-6OZ
    Plated holes Tolerance
    0.08mm(min±0.05)
    Non-plated hole tolerance
    0.05min(min+0/-0.05mm or +0.05/-0mm)
    Outline Tolerance
    0.13min(min±0.10mm)
    Insulating resistance
    0 ohms (mormality)
    E-Test voltage
    500V+15/-0V 30S
    Warp and Twist
    0.7% (semiconductor test board≤0.3% )
    About HighLeap Electronic

    HighLeap Co., Ltd is a professional PCB manufacturer in Shenzhen China for over 20 years of development, HighLeap turns into a first class manufacturer of HDI PCB, with production capability 35,000 square meters. HighLeap is providing high quality of bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world.


    As for Service, we provide 7-24 on-line professional Pre-sale, Selling and After-Sale service to solve any question about the order. Any time, any requirement will get Prompt Reply from our well-trained and friendly support staff.

    Our main market is Europe, north USA,Australia, South America, and Asia. we will put much more effort to build connection with more customers in more area. All we want to do, is to connect the world by our products, to share the Value, Happyness and Achievement with more customers.

    Advantages of HighLeap Electronic

    Quality policy:
    Comprehensive quality control
    Continuous improvement Customer satisfaction


    Quality certificate:
    1. TATF16949: 2009
    Certificate number: 468676TS09
    2. ISO9001: 2008
    Certificate number: DE-468676 QM08
    3. ISO13485:2016
    Certificate number: 91440300692511441B
    4. ISO14001:2015
    Certificate number: 91440300692511441B


    Quality target:
    SMT after-pass rate 98% DIP QC straight-through rate 100%
